Hybrids In Action For Commercial Applications

Rinnai’s Head of Technical, Peter Seddon, looks at the benefits of heating & hot water hybrid systems in commercial applications. Hybrid systems utilise two fuels therefore contributing towards cleaner operations whilst maintaining seamless and efficient performance​​.​

To learn more about Rinnai Hybrids request your free information pack today at www.rinnai-uk.co.uk/contact-us/ask-us-question

Mainstream media outlets often only mention singular technologies such as heat pumps, solar and natural gas water heater and boilers as solutions for commercial property heating and hot water. One of the emerging options within the UK heating and hot water market is the hybrid system.

Why Hybrid and not full electric? There may be certain technical or financial constraints which would prohibit full electric heating and or hot water systems to be installed in every non-domestic building. According to the statistics published on the government website there are approximately 2.13 million non-domestic buildings in the UK. If we look at heavily built-up areas like cities, these buildings are generally clustered together so space is a premium, to install large capacity heat pumps to satisfy the full building demand may not be viable. The electrical loading on the building may also prevent going full electric. The last issue could be the building owner/occupier may not simply have the funds available to switch to a full electric system either on a capital and/or operational expenditure. This is because heat pumps generally take up a lot more space and cost more per kW than a traditional gas system. Rather than not doing anything because of the aforementioned constraints, Hybrid Systems could be a good starting point for their decarbonising journey.

A hybrid heating and or hot water system uses various energy or power-driven technologies as traditional fuel systems and carbon neutral technology are incorporated into one assimilated system. Rather than relying on one fuel source or technology such as renewable electricity and heat pumps, hybrid options instead use two forms of power or heat generators to complete daily functions inside commercial applications.

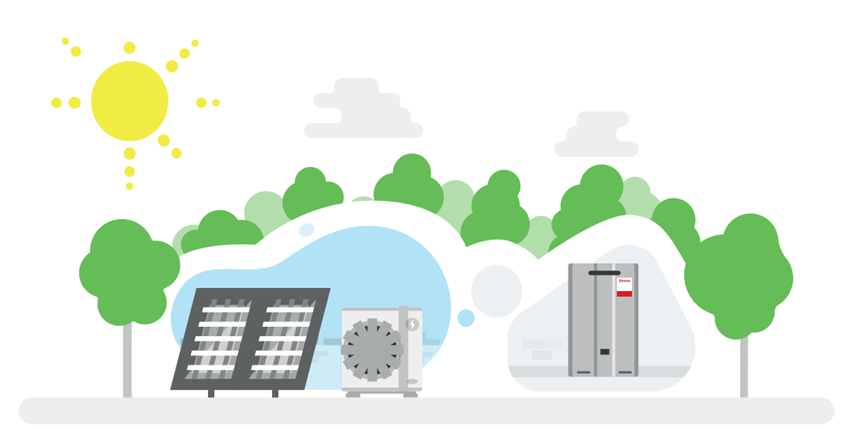

Hybrid systems consist of a combination of traditional fuel sources like natural gas, oil or LPG and a renewable technology such as solar thermal or heat pump. Hybrid systems are designed to optimise factors such as outside temperature, current energy prices, property heating and DHW demand.

For smart domestic hot water systems such as continuous flow water heaters used with heat pumps, the renewable heat generator provides the base load as the water heaters “top up” the temperature. This approach is inherent within the system and ensures optimal performance. This type of system was installed at the Mere Leisure complex in Cheshire and resulted in reduced carbon emission, capital expenditure costs and high levels of DHW for bedrooms and catering facilities find out more https://www.rinnai-uk.co.uk/about-us/case-studies/hotels/rinnai-hybrid-heat-pump-system-improves-efficiency-large-hotel-golf-course-resort

Using two separate energies compacted into a singular system offers a range of benefits for the end-user. The first advantage is from a financial viewpoint: as electrical costs are higher than natural gas, utilising a system that accepts both renewable electricity and traditional fuel sources means that costs could be lower and more manageable when compared to an exclusively electrical system. From a capital expenditure perspective the cost will be lower than a full electric system creating lower whole of life costs.

In terms of operational performance, a hybrid heating and hot water system combines two energies and technologies that ensures energy efficiency whilst supporting operational consistency. A hybrid system will preferably incorporate the heat pump or solar thermal technology during mild weather whilst using the other appliance during periods of cold conditions. This will optimise the strengths of each technological approach in separate weather condition circumstances; the addition of a combustion-based water heating technology will boost the renewable base load to ensure DHW performance.

A further benefit for the end-user is that both lifecycles of each technology is lengthened. As each technology does not have to apply full effort to satisfy demand, component and overall system longevity will be increased due to a lessening of required workload.

Hybrid systems offer a practical route for net-zero objectives to be accomplished. As not all customers can fully financially commit to decarbonising practises, an alternative mix of technologies that incorporates both renewable and traditional technologies and fuels is offered to bridge this gap. This practical approach introduces customers to alternative and clean energies whilst maintaining control over energy costs by still relying on conventional and more cost-effective methods of energy usage.

A hybrid system is comprised of a number of features, components, technologies and fuels. The main elements of a hybrid heating and hot water system is listed below.

1. Heat Pump: The renewable backbone of the system. Most hybrid systems utilise air source heat pumps (ASHPs) due to their ease of installation and affordability. Ground source heat pumps (GSHPs) are also viable for specific applications, particularly in commercial settings.
2. Condensing Gas Boiler / Water Heater: A high efficiency water heater serves as the auxiliary or backup heat source. Modern condensing water heaters are designed to extract as much heat as possible from combustion gases, increasing energy efficiency.
3. Solar Panels: When solar thermal collectors are included, they can contribute heat to the system directly or to a buffer tank. This heat can then be drawn upon before the system calls for either the heat pump, gas boiler and water heaters making it more energy efficient.
4. Control Unit / Smart Thermostat: The 'brain' of the hybrid system, responsible for deciding which heat source to use based on real time conditions. Many units are integrated with weather compensation and predictive algorithms.
5. Buffer Tank / Hot Water Cylinder: Optional but recommended for systems that provide domestic hot water (DHW). The buffer tank helps to smooth out demand fluctuations and improve efficiency. Other cylinders can include buffers for minimum water content and for additional hot water demand.
6. Sensors and Meters: These measure temperature, flow rates, and energy consumption, feeding data back to the control system to enable automated switching.

Hybrid heat pump systems provide practical, economic and technical solutions as best exemplified by a recent installation at a luxury complex at Farringdon in the City of London. At this site a hybrid water heating array of Low-GWP 50kW heat pumps plus bespoke thermal water stores, with optimised coil transfer to maximize heat pump performance, have been combined with 10 cascaded Hydrogen blends ready (I2HY20 certified) continuous flow water heaters.

The systems were delivered direct to site in one complete consignment, ready for installation. This expansive complex comprises a new, luxury hotel, prestigious & contemporary office space alongside affordable housing units.

The extensive retrofit site will pay respect to this heritage with many of the original features retained in the 150+ bedroom luxury hotel, almost 20,000 sq ft of opulent capital city office space and nine new-build affordable residential units. The hotel group running the site already has one other unit in London with two others planned.

In addition to the City of London site, hybrid systems have successfully been installed and continue to offer seamless operational efficiency at alternative locations. A national chain of gyms has successfully piloted a LOW-GWP commercial ASHP (Air Source Heat Pump) with the aim of replacing their existing carbon intensive electric storage water heater systems which rely on multiple electrical immersions.

The flexibility of a bespoke hybrid system design has ensured that some of the existing electric water heaters can stay remain in place as part of a cost saving hybrid heat pump system – saving the end user on cost and reducing carbon emissions.

Each gym studio that has been measured revealed different kW load limits ranging from 8kW to 20kW. The gym owners were advised and then decided on the necessary decarbonizing technology required for each individual gym, these included:

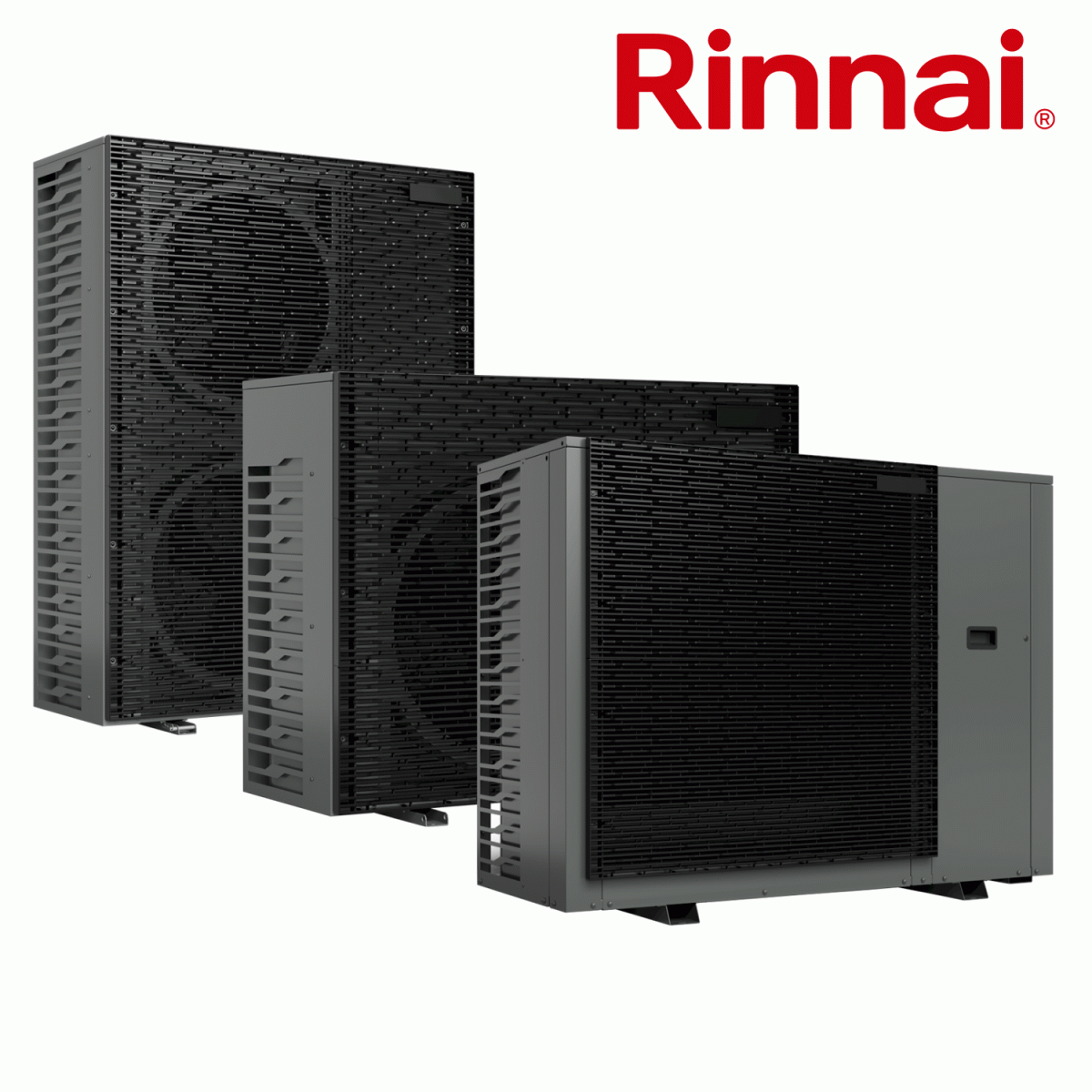

• LOW-GWP R290 ASHP’s
• Electric Storage water heaters
• Optimised Heat Pump Cylinder Coil cylinder or plate heat exchanger.
• Unvented kit (cold water feed).
• System controls

Consultants, contractors, specifiers and installers are advised to consider using manufacturers and suppliers of decarbonising technology with proven records of successful installations of hybrid systems that equip locations with the ability to reduce costs and emissions.

Rinnai aim to inform all UK customers and end-users of a wide variety of technological options, including and specifically, hybrid systems - that can supply all properties with hot water and heating requirements whilst decreasing carbon output and operational costs.

For free of charge design support contact the Rinnai design experts today https://www.rinnai-uk.co.uk/contact-us/help-me-choose-product
