Total Access Solution At Verde

Verde SW1 is a state-of-the-art redevelopment in the heart of Victoria in London’s West End, within 150 meters of a new entrance to Victoria Station.

The building includes a dramatic triple-height reception, and six rooftop gardens create a 'park in the sky' with stunning views across London. The property is owned by Tishman Speyer and was designed by internationally renowned architects Aukette Swanke.

PTSG’s Access Division, Integral Cradles Ltd, was contracted to provide a total access solution to both the inside and outside roofs, to ensure the building can be fully accessed and maintained.

For the outside of the building, Integral Cradles provided four new BMUs that included features such as folding jibs for reduced parking height, luffing counterweight sections to avoid clashes with the building structure and auxiliary hosts for glass replacement. The team also provided eight new safety lines with a combined length of 377m, which also incorporated abseil points from its posts.

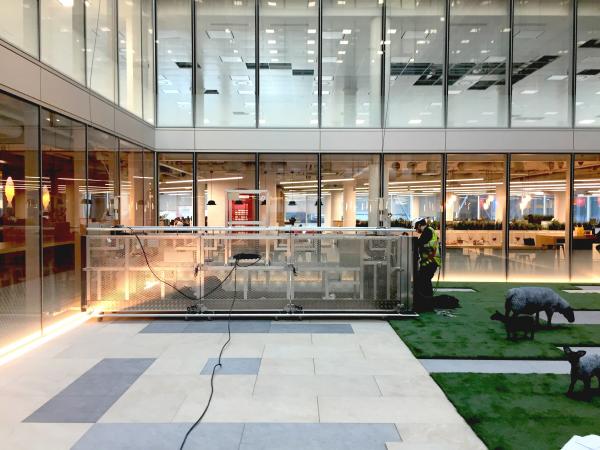

On the inside of the building, to provide access to the internal atrium glazing, the team provided seven new internal monorails, complete with a modular cradle that was specifically designed and built to fit in the goods lift so it could be stored away from the atrium reception.

The client had requested an access system that mirrored the one in place at New York’s The High Line- an elevated linear park created on a section of the disused New York Central Railroad spur. This meant incorporating a ‘weathered track’ design that utilised rusty looking steel and organic, recessed tracks to reduce the visual impact of the system on the building.

To ensure the structural integrity of the track is maintained, it was designed without welded connections, and increased thickness to the flanges and web. This meant a layer of superficial steel was installed to protect the track from future corrosion. The fixings were painted with a rust colour to complete the aesthetic look of the system.

The contract for this project was negotiated directly with Tishman Speyer. The team’s history of collaborating with the same team on projects such as St Mary’s Axe and Heron Tower was key to the being awarded the works. The final outcome was a system designed and delivered to the delight and satisfaction of the client.



Change in PTSG divisions

Premier Technical Services Group PLC (PTSG) has announced plans to rename two of its four divisions following significant growth in its rope access/steeplejack and fire services sectors. The niche specialist service provider, which operates extensively in the facilities management and construction sectors, has updated its corporate branding.

PTSG’s business will be segmented into four clear and distinct areas:

  • PTSG Access and Safety – providing installation, maintenance, inspection, safety testing and repair services for all types of equipment including building maintenance units, gantry systems, cradle systems, monorail systems and lifting equipment.
  • PTSG Electrical Services – providing installation, maintenance, inspection, safety testing and repair services for all lightning and surge protection systems along with fixed wire and portable appliance testing.
  • PTSG Building Access Specialists – providing highly trained rope access and steeplejack personnel who can access any part of any building or structure to install, maintain, inspect, test, clean and repair any aspect that will help to improve and sustain aesthetic and structural integrity.
  • PTSG Fire Solutions – providing installation, maintenance, inspection, safety testing and repair services for all types of dry riser systems, fire alarms, sprinkler, emergency lighting and fire extinguisher systems.

Picture: Integral Cradles was contracted to provide a total access solution for the Verde building in London's Victoria







Article written by Brian Shillibeer
